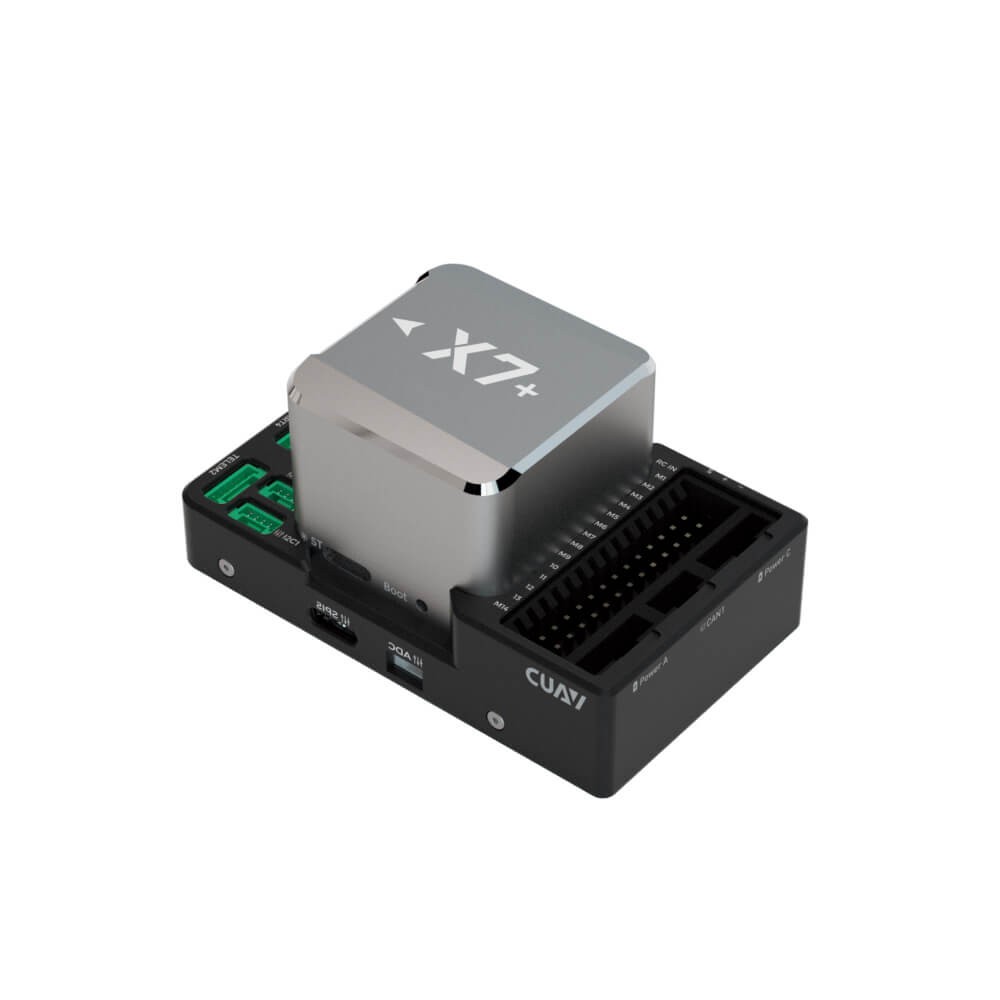

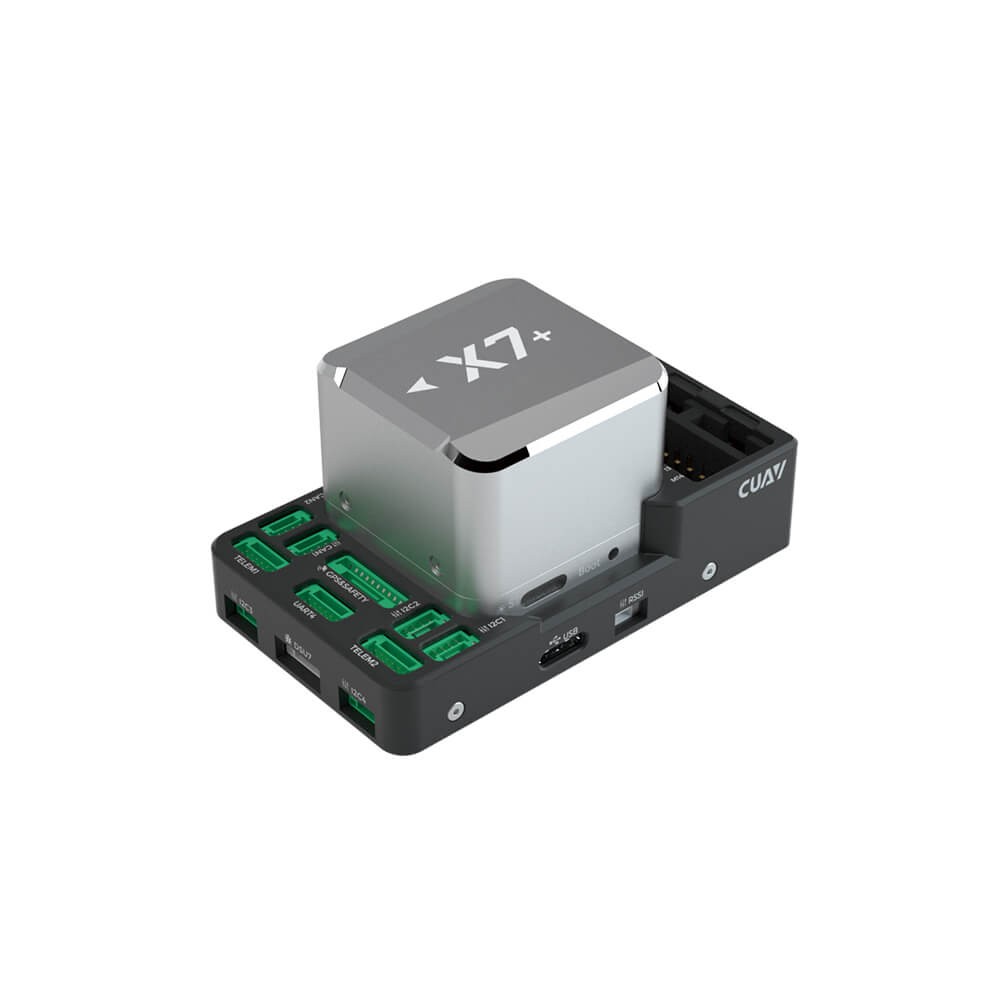

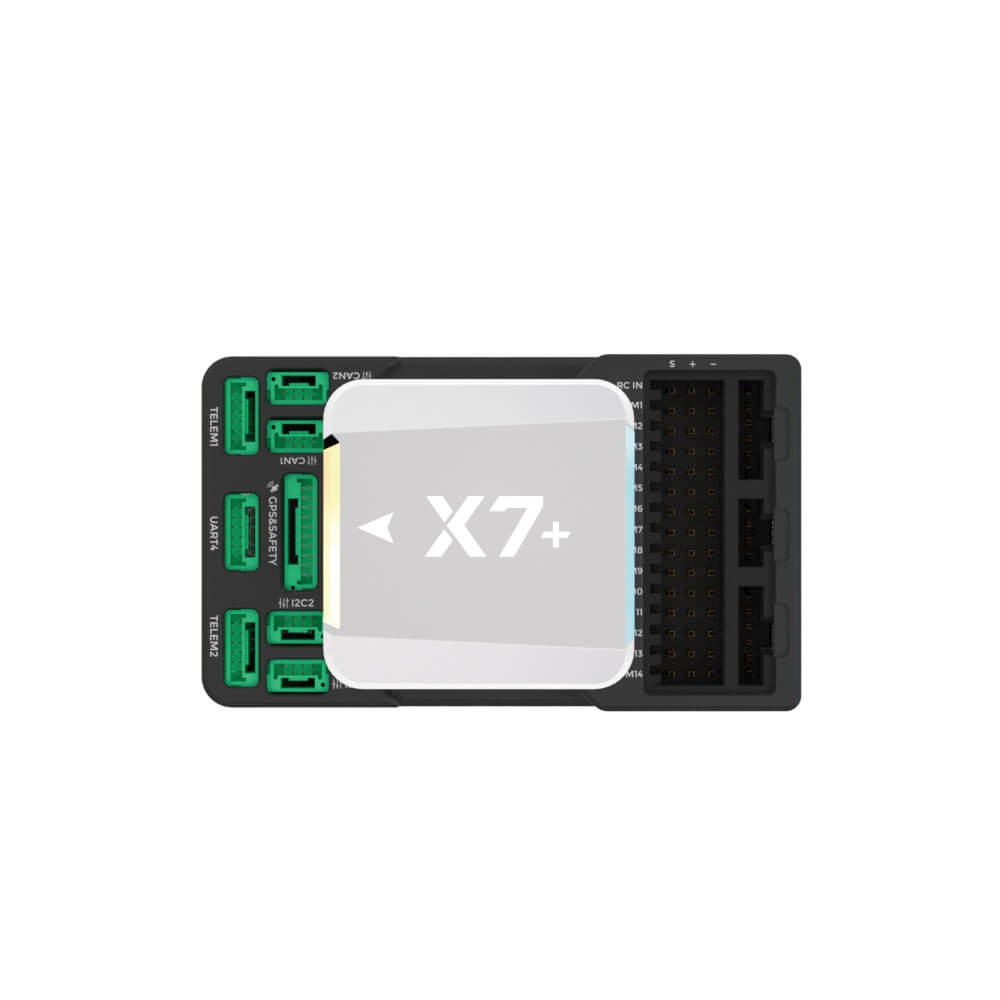

CUAV X7+ Intelligent Controller

Product Description:

CUAV X7+ Intelligent Controller


• Built-in vibration damping, adaptable to various harsh operating environments.

• Equipped with triple redundant IMU groups supporting intelligent failover.

• Integrated temperature compensation ensures optimal IMU performance.

• Compatible with CAN bus current meters.

• Modular design with customizable carrier boards.

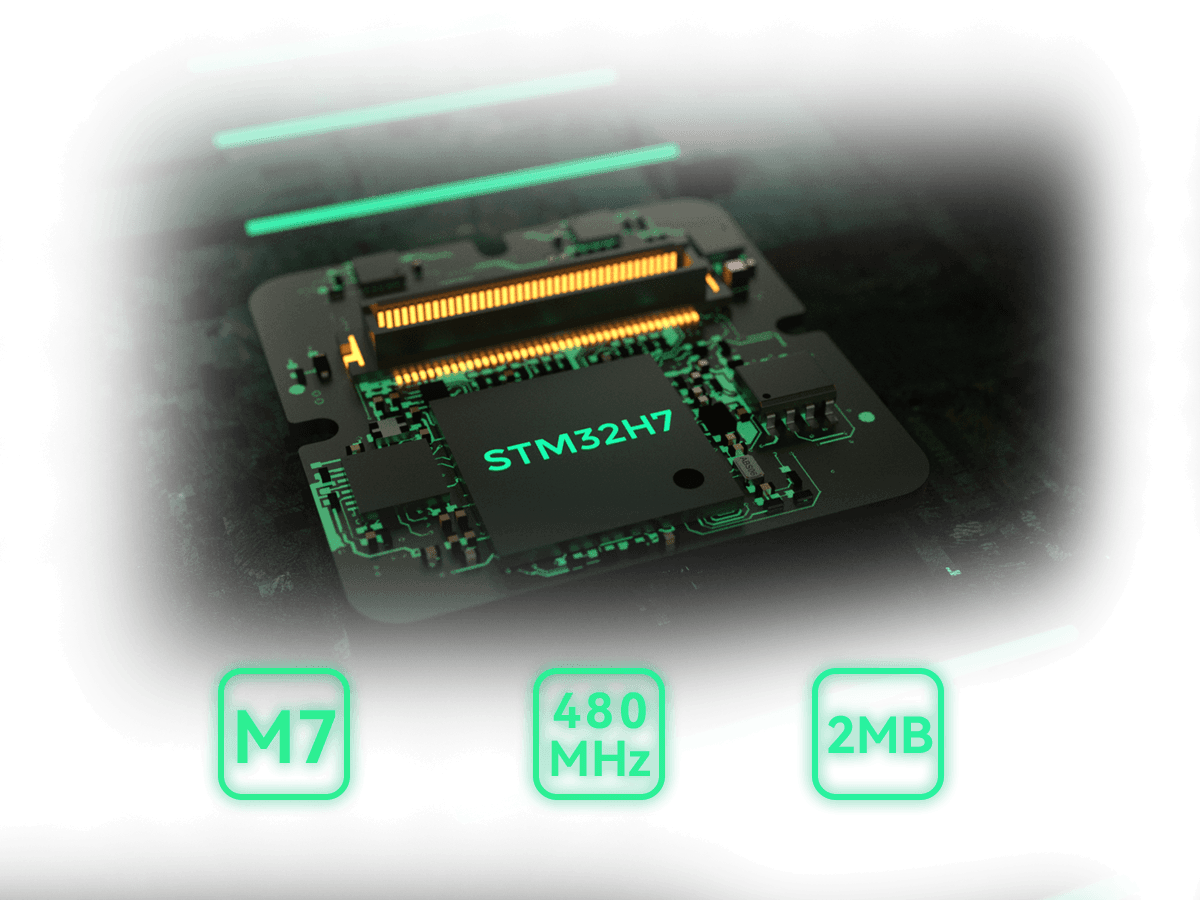

H7 Processo Powerful Performance


X7+ autopilot uses STM32H743 series processors CPU, Cortex-M7 core (with double precision Floating-Point Unit). It makes operating frequency increase to 480Mhz, 2MB Flash，1MB RAM，Meet the higher computing needs of flight controllers Compared with the STM32F7 product line, the dynamic power consumption efficiency is doubled.

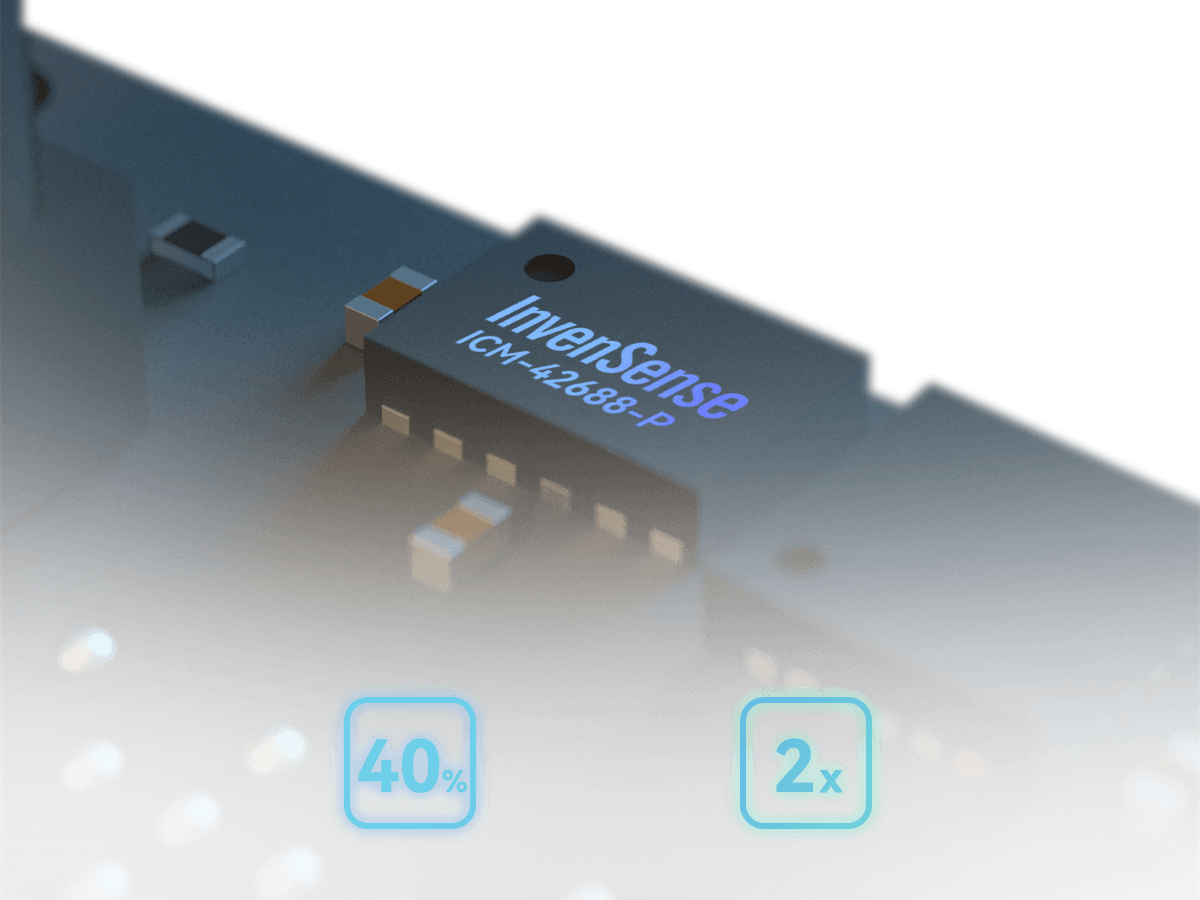

The Sensor is Upgraded Again

The sensor is one of the important indicators to evaluate the flight controller. This time, we have added the ICM-42688-P sensor. Compared with the traditional consumer IMU, the noise figure of ICM-42688-P is reduced by 40%, and the temperature stability is improved 2 times, so as to ensure the highest accuracy measurement in the case of temperature changes.

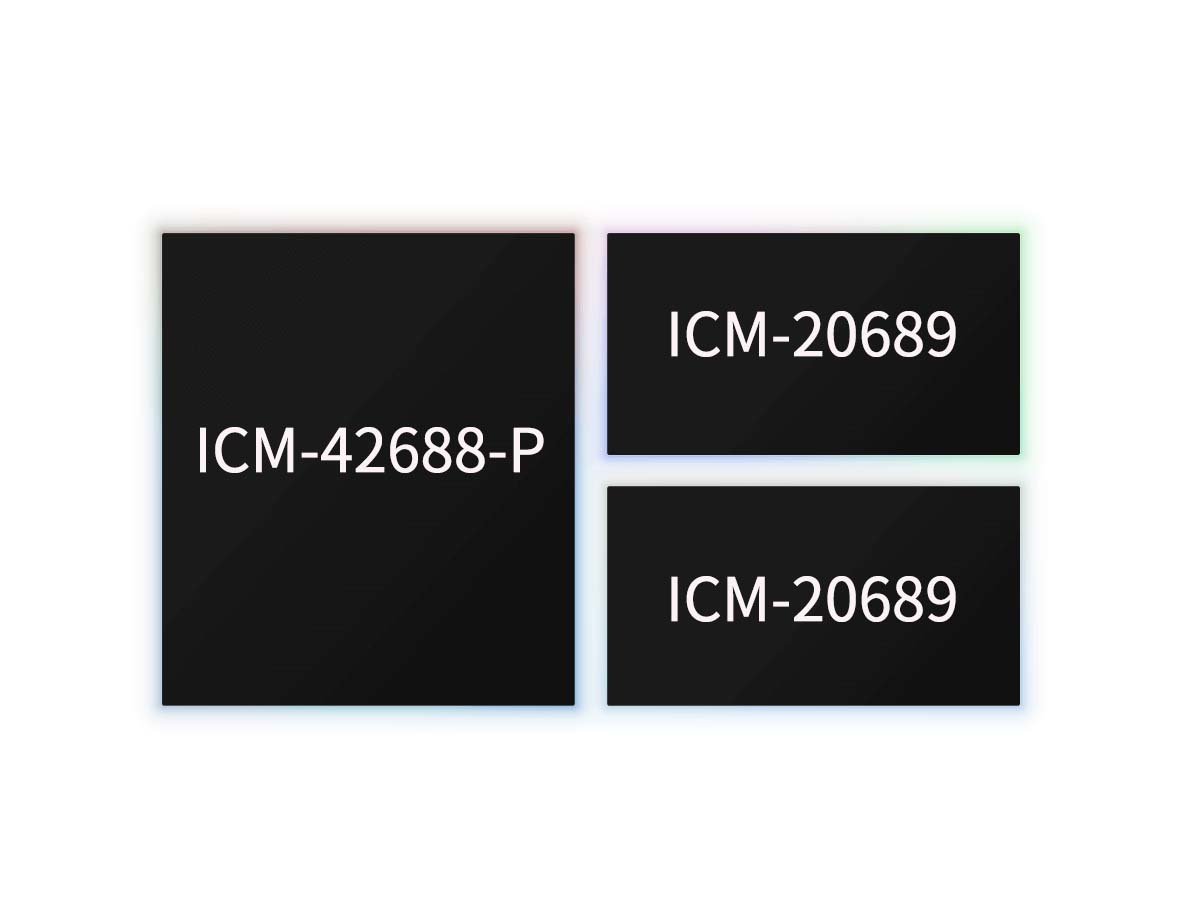

Sensor Redundancy Design


Built-in three sets of accelerometers and gyroscopes, the flight controller monitors the data of multiple sensors in real time, and executes redundant switching immediately in case of failure to improve flight safety and stability.

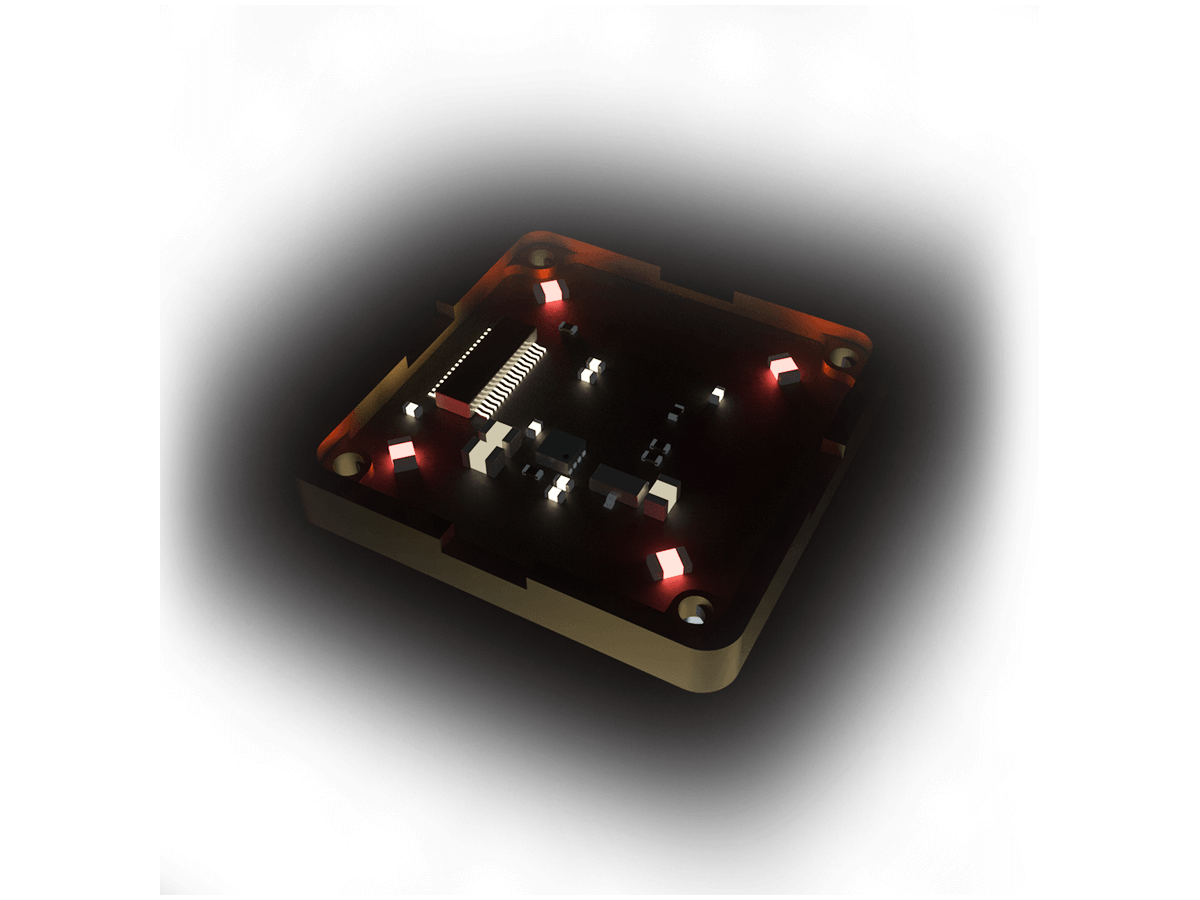

Temperature Compensation System


The built-in high-precision sensor temperature compensation system makes the sensor work at a constant temperature, ensuring that the sensor can operate stably with high precision and sensitivity in high and low temperature environments.

Standard Pack Digital Power Module


Standard package include DroneCAN protocol digital power detection module, using CUAV independent R&D ITT algorithm, accurate measurement of UAV real-time voltage and current, making flight time estimation more reliable.

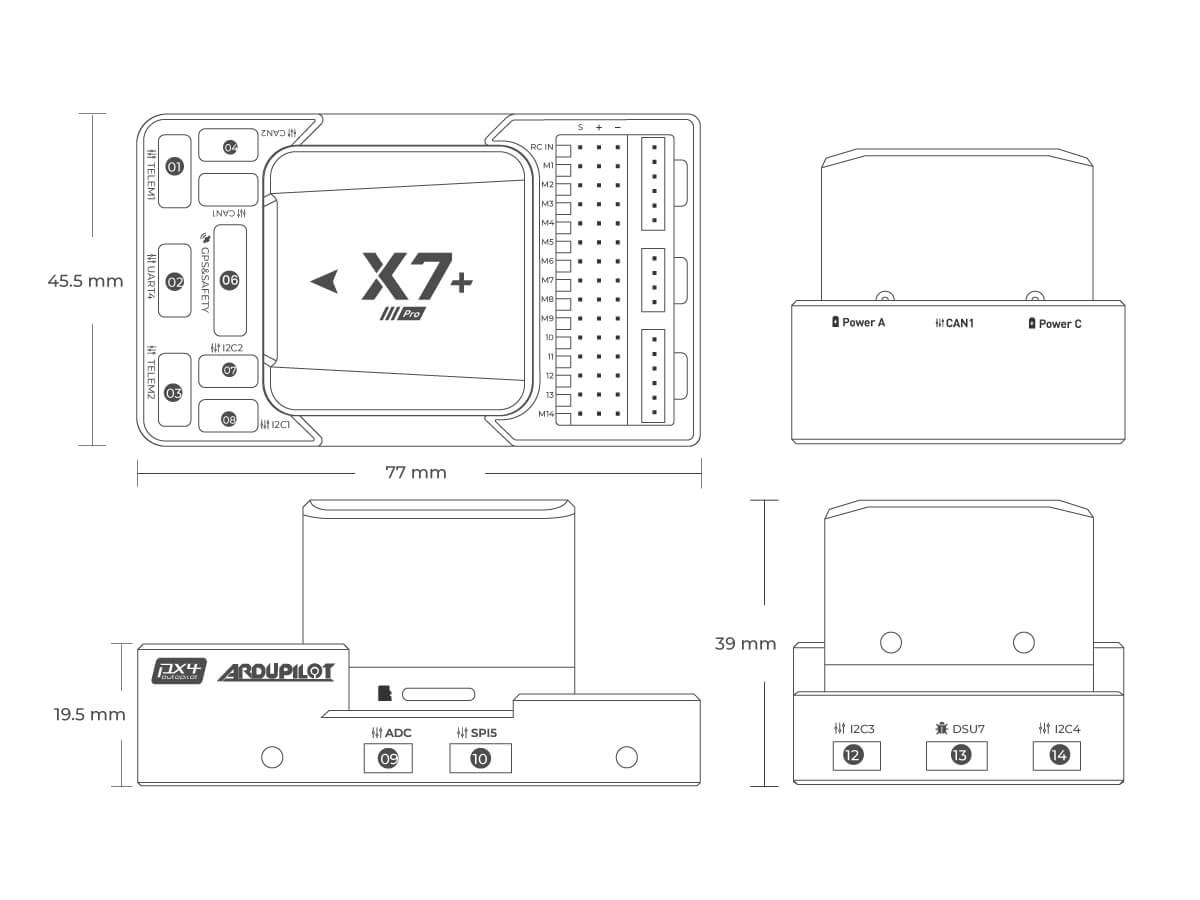

Dimensions chart
