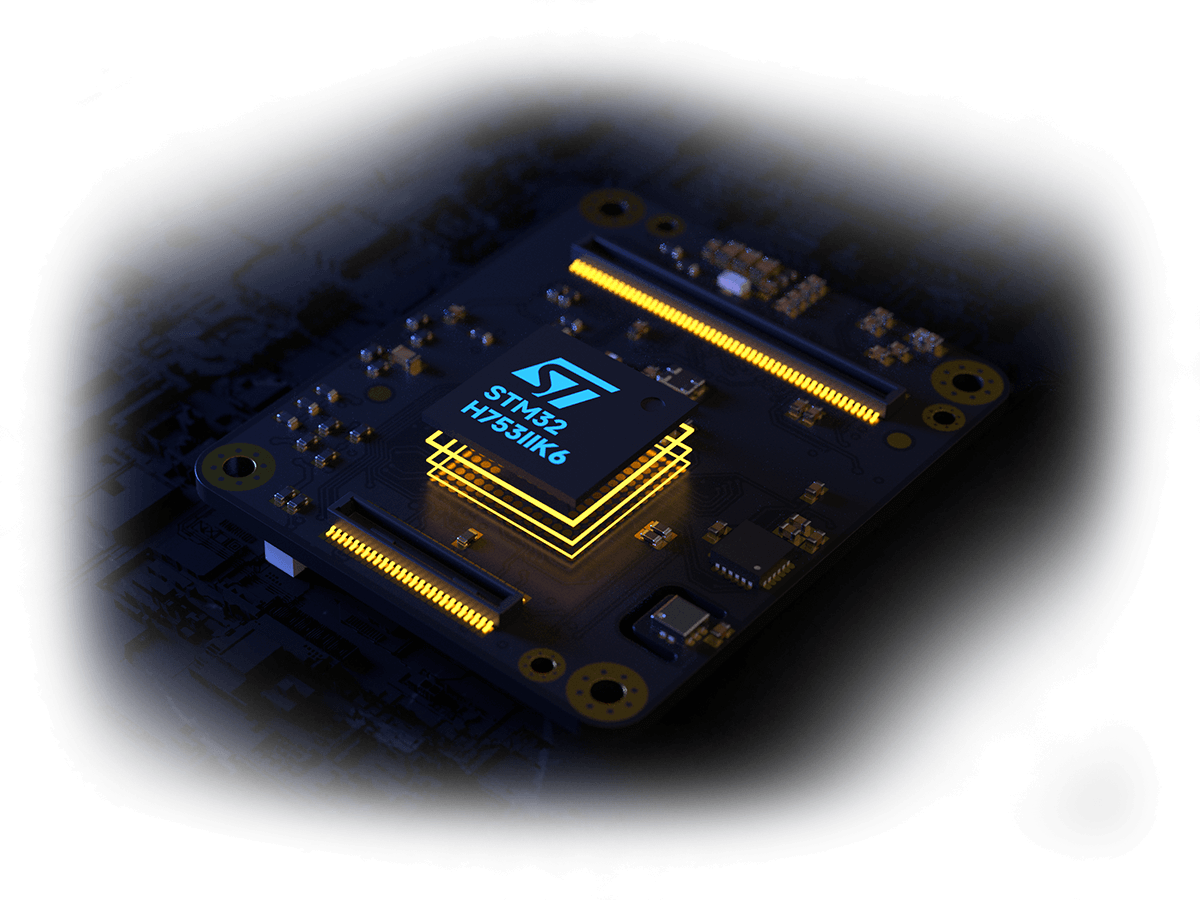

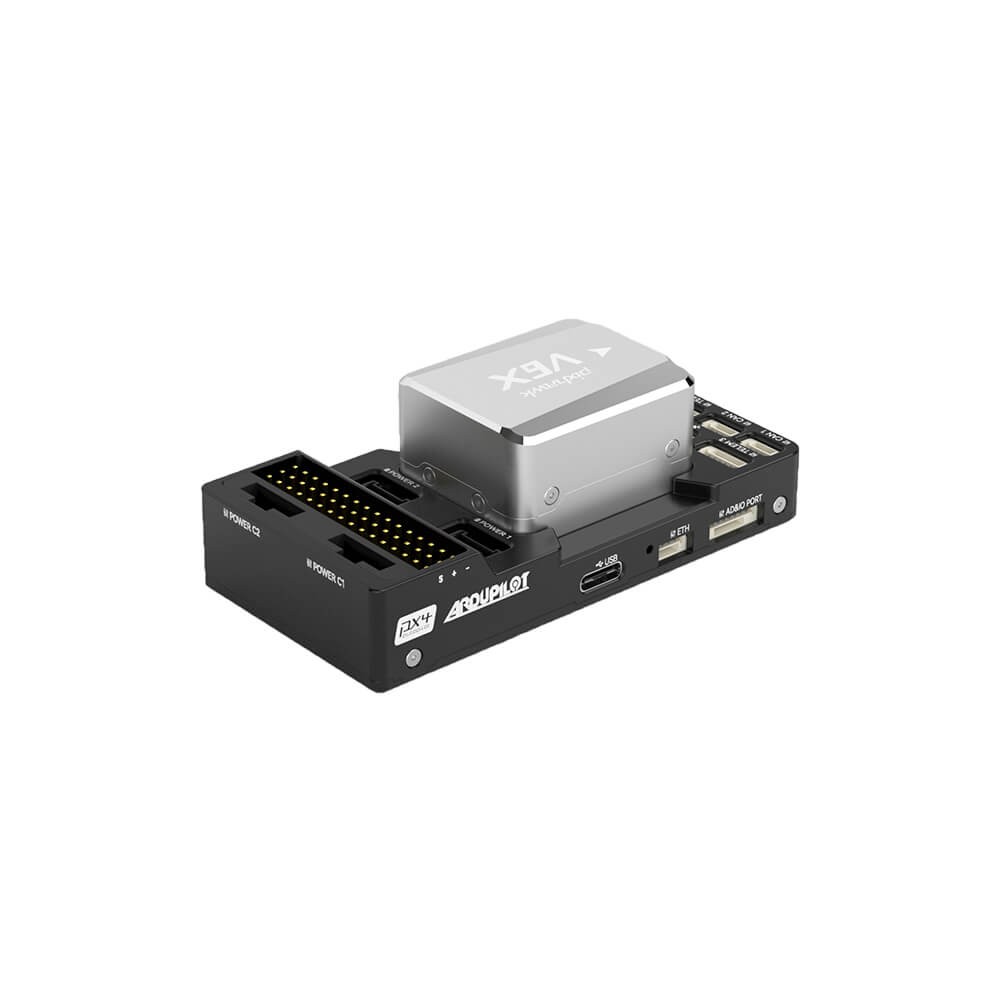

H7 Double Precision Floating-Point Arithmetic Unit Processor

Using STM32H753IIK6 processor, double precision floating point arithmetic

unit (DSP&FPU), the main frequency up to 480MHz; 2M FLASH,1MB RAM; For

Autopilot to bring powerful computing power, rapid data processing ability, for more

functional development and flight stability to provide more possibilities

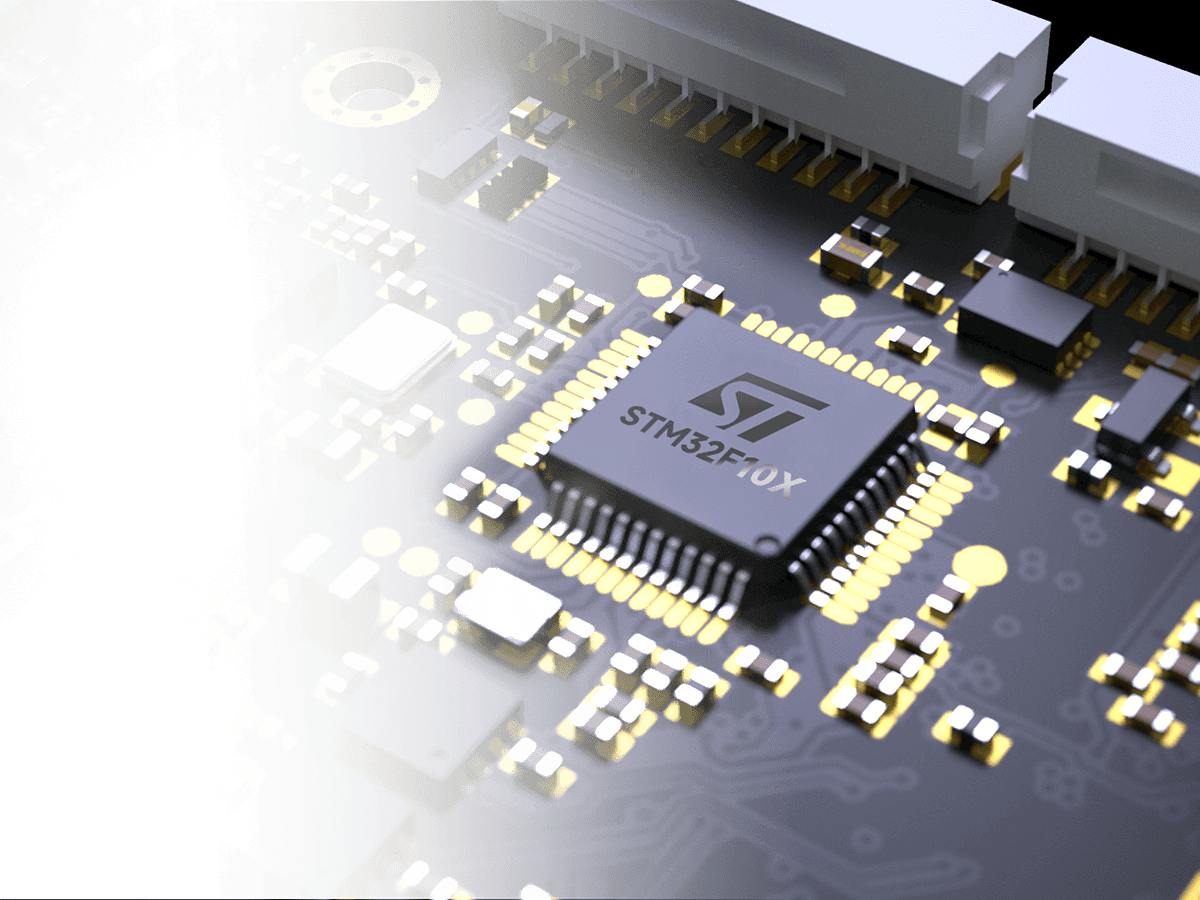

M3 Coprocessor to Enhance the Expansion Capacity

The high performance ARM® Cortex®-M3 coprocessor adds more security

and external scalability capabilities to UAVs

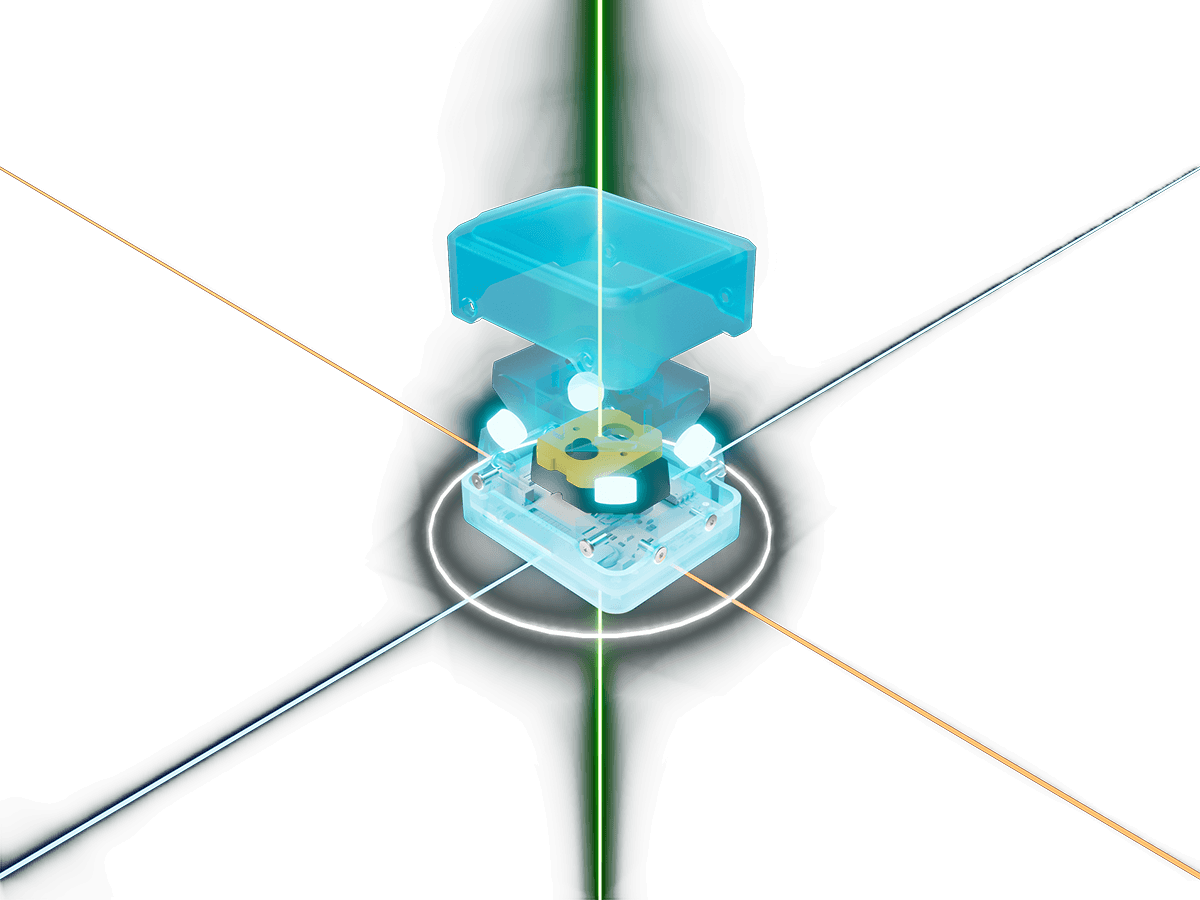

New Shock Absorption System Design

A novel vibration damping system is constructed internally using advanced damping materials characterized by low hardness, high resilience, and durability. The design incorporates CNC five-axis-machined inclined four-corner support components, ensuring consistent damping performance across the X, Y, and Z axes. This configuration effectively filters out high-frequency vibrations generated during equipment operation, providing cushioning and protective effects. The superior vibration isolation and noise reduction capabilities minimize acoustic interference with readings, thereby enhancing the accuracy of sensor data acquisition.

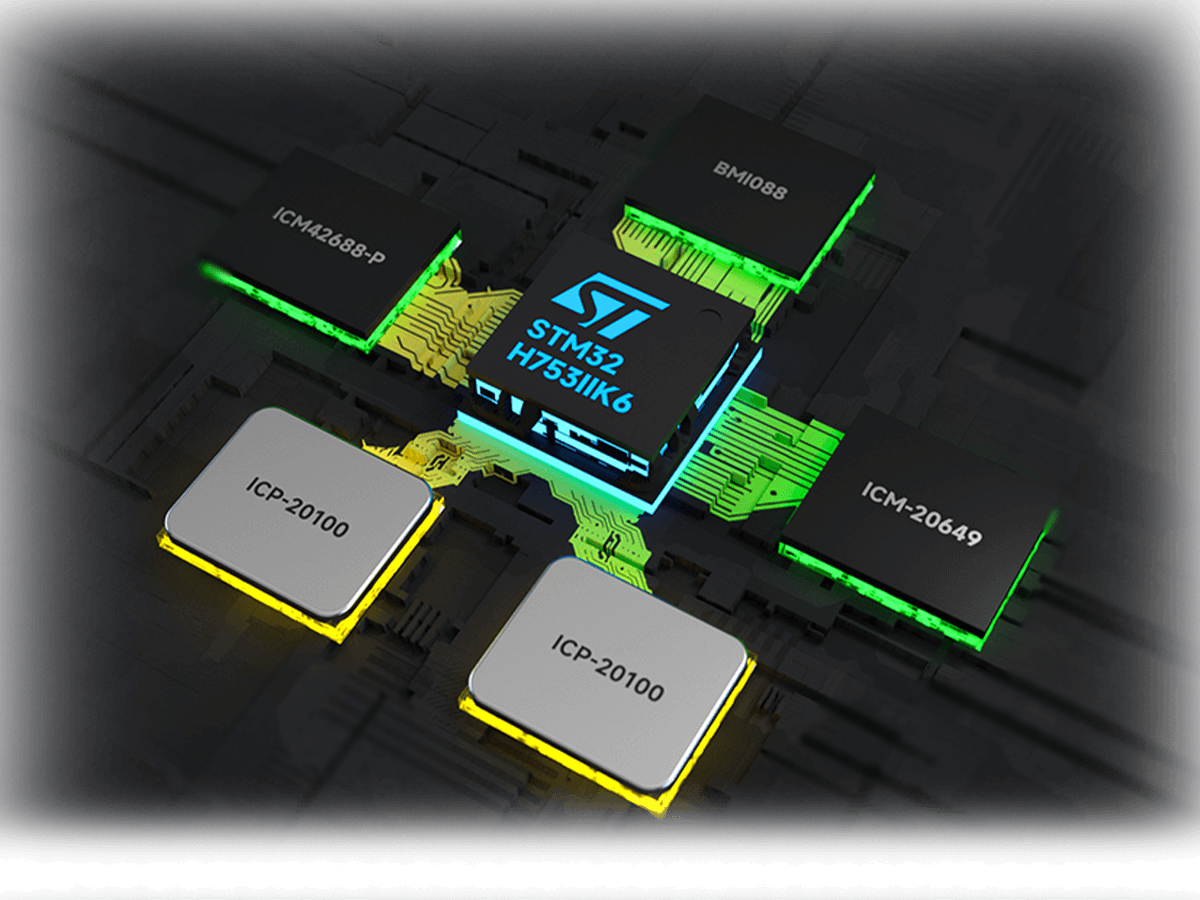

Multiple Redundancy Design Ensures Flight Safety

With three redundant IMUs and two redundant barometers on separate buses, when one set of IMUs fails, the system seamlessly switches to another reliable IMU

Adapt to More Complex Magnetic Environment

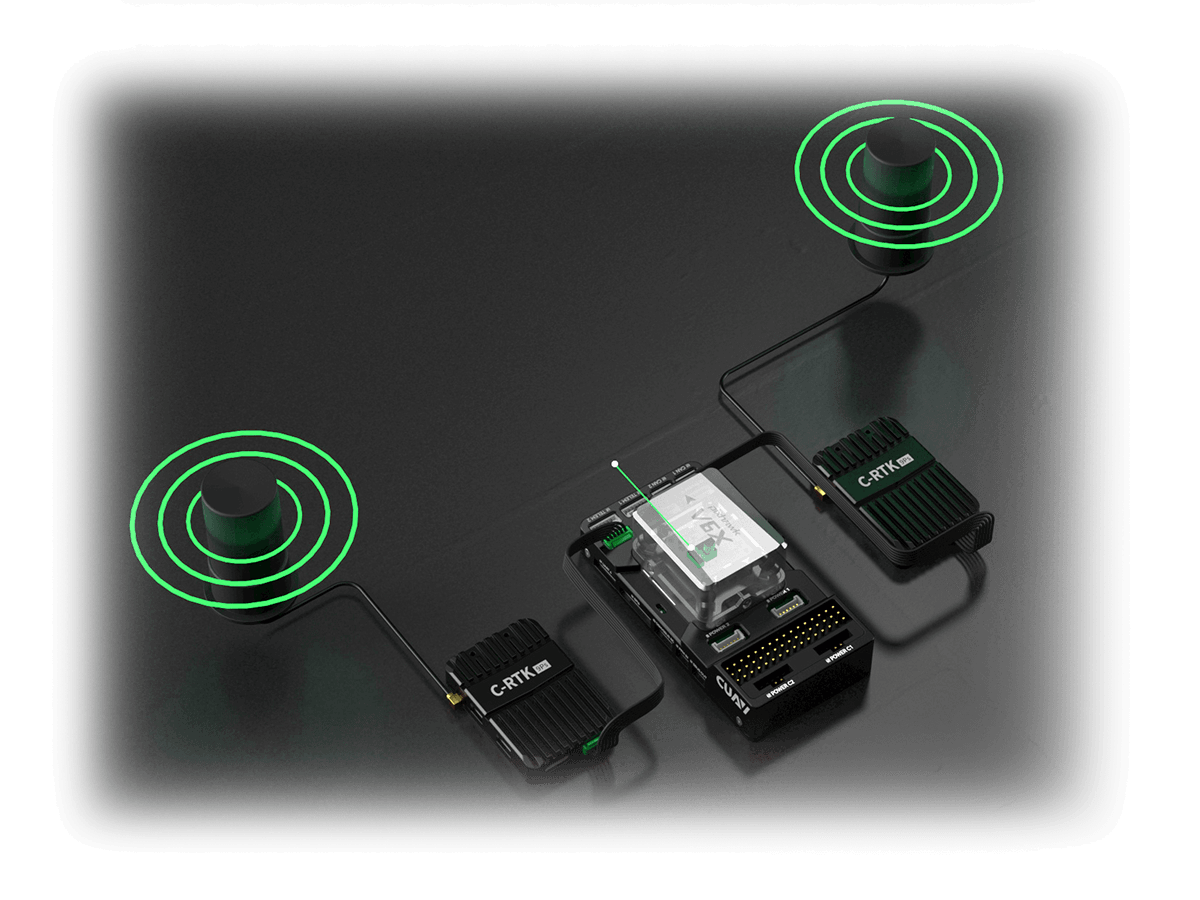

In order to adapt to the complex magnetic field environment, the RM3100 magnetic compass is selected, which supports the GPS direction finding function, and completely solves the trouble of magnetic compass interference

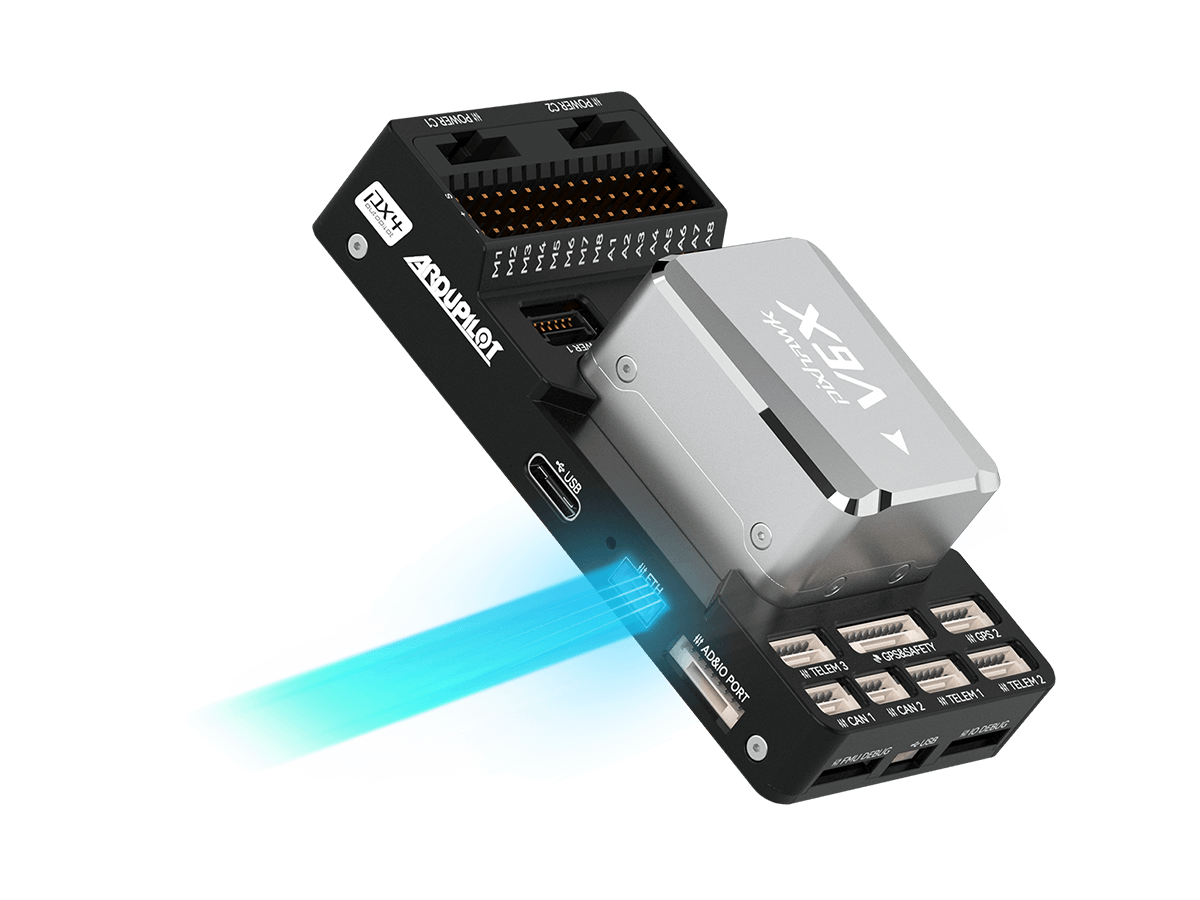

Integrated 100M Ethernet Interface

High-speed communication with task computers through Ethernet; In the future, high-end links, INS and high-end mapping cameras can be connected through Ethernet to meet the needs of high-end unmanned system
