EvTrack 3D Grader Control System

Category： 001
INQUIRY EMAIL

Product Description:

Machine Control

Expert Precision, Total Control

Optimised Machine Control

•Real-Time 3D Guidance:

Gain clear, real-time insights into your excavation work with advanced 3D visualizations, ensuring every dig is aligned with project plans.

•Pinpoint Accuracy:

Achieve ultra-precise excavation with accuracy up to ±2 cm, reducing the need for rework and ensuring smooth, error-free operations.

•Dynamic Elevation Management:

Control depth and slopes automatically, adjusting in real-time to changing site conditions without manual intervention.

EvTrack 3D Grader Control System

Standard Kit Plus Extras	3D Grader System
	With the system, you can work with high-precision GNSS to monitor and control your Grader’s blade position through a digital model.
	This system enables precise blade control, accurate grading, and surface finishing, ideal for projects like road maintenance, final trim grading, infrastructure, mining and large-scale construction
	The EvTrack system is engineered for ease of use and high accuracy, perfect for industrial, residential, and civil construction sites.

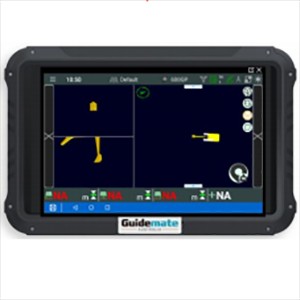

Control Terminal:	GPS/GNSS Functions:
Gain clear, real-time insights into your grading and finishing work with advanced 3D visualisations, ensuring every pass precisely matches your design surface	Utilise 3D GNSS technology to view both 2D and 3D models, offering flexibility and precision for every grading and finishing task
Wireless Flexibility: The control panel is designed for easy placement and removal within the cab, giving operators full control and convenience	Switchable 2D/3D Interface: Effortlessly switch between 2D and 3D views with the press of a button to meet your project’s requirements.
Advanced Sensors:	Software: The integrated
The sensors deliver unmatched accuracy and speed for graders, optimising your blade’s performance. These sensors provide precise slope and elevation control, ensuring your grader delivers accurate and consistent surfaces every time	software allows you to create, edit, and refine terrain models in real-time, enhancing your grading accuracy, surface quality, and productivity, giving you superior control throughout road and surface finishing operations

Machine Control

Control Terminal

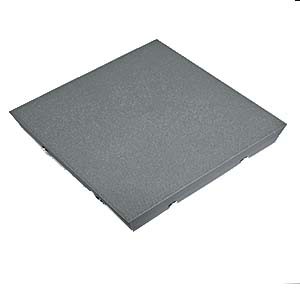

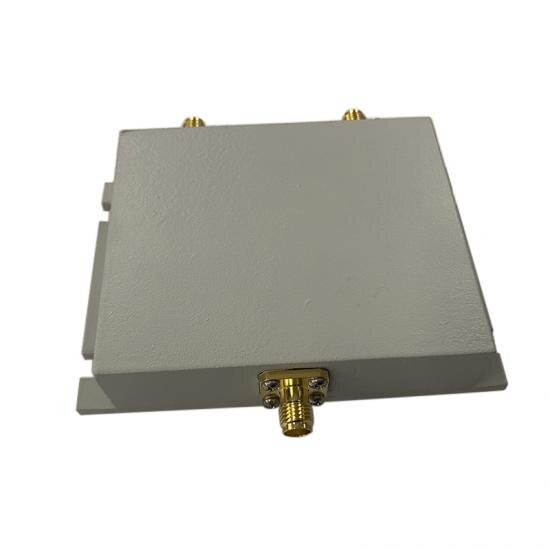

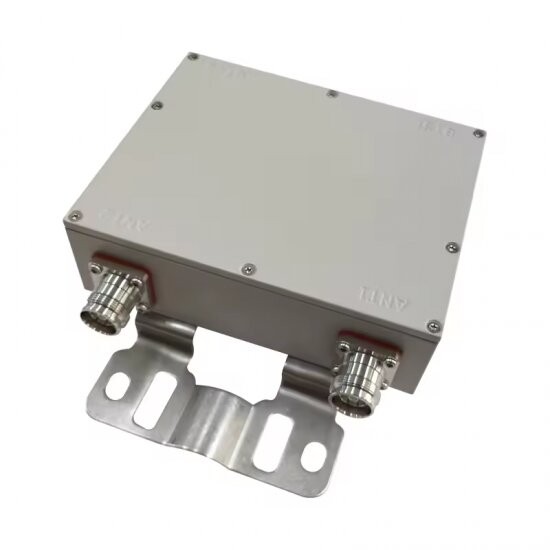

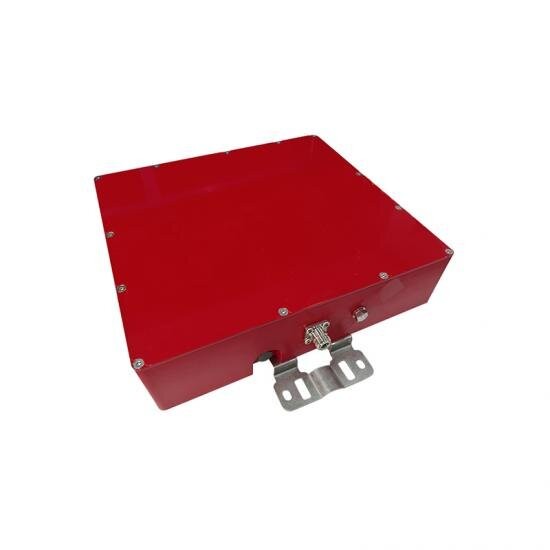

GNSS Antenna

Description	Details	Description	Details
Water/Dust rating	IP65	Frequency Bands	HF band: 1.525 to 1.615 GHz, LF band: 1.165 to 1.278 GHz
Operation temperature	-20° to +70°C	Antenna Frequency	GPS L1/L2/L5/L-Band, GLONASS G1/G2/G3, COMPASS B1/B2/B3, GalileoE1/L1/E2/E5a/E5b/E6
Storage temperature	-40° to +85°C
Dimension (W x H x D)	281 x 181 x 42 mm
Weigh	1.5 kg
Audio	Built-in speakers	Antenna Polarization	RHCP
Screen	10.1" high-brightness touch	Antenna V.S.W.R	≤ 2.0
Resolution	1024 x 600 pixels	Antenna Peak Gain	≥ 5.5 dBi
WiFi/BT	WiFi 2.4 GHz / 5.8 GHz (IEEE 802.11 a/b/g/n/ac), BT 2.1+EDR/3.0/4.1LE/4.2	Antenna Impedance	50 Ω
WiFi/BT		Antenna Phase Center Error	stable, millimetre-level positioning accuracy
CPU	8 cores, 1.8 GHz	Antenna Horizontal coverage angle	360°
RAM	4 GB	LNA Gain	40 ± 2 dB
Flash storage	64 GB ROM (supports up to 256 GB via TF card)	LNA Noise Figure	≤ 2 dB
		Mechanical Connector	TNC Female
		Operating Temperature	-45°C ~ +85°C
		Vibration	9.8g RMS, 24-2000Hz
		Shock	Vertical axis 75Gs, 6ms
		Ingress Protection	IP69K

EvTrack 3D GraderControl System

With the Australian-designed system, you can work with high-precision GNSS and/or Total Station to monitor and control your grader’s blade position through a digital model.This system enables precise blade control, accurate grading, and surface finishing, making it ideal for projects like road construction, infrastructure development, mining haul roads, and final trim grading. The EvTrack system is engineered for ease of use, reliability, and superior accuracy, perfectly suited for industrial, residential, and civil construction applications

Tags: Machine Control EvTrack 3D Grader Control System
