Product Description:

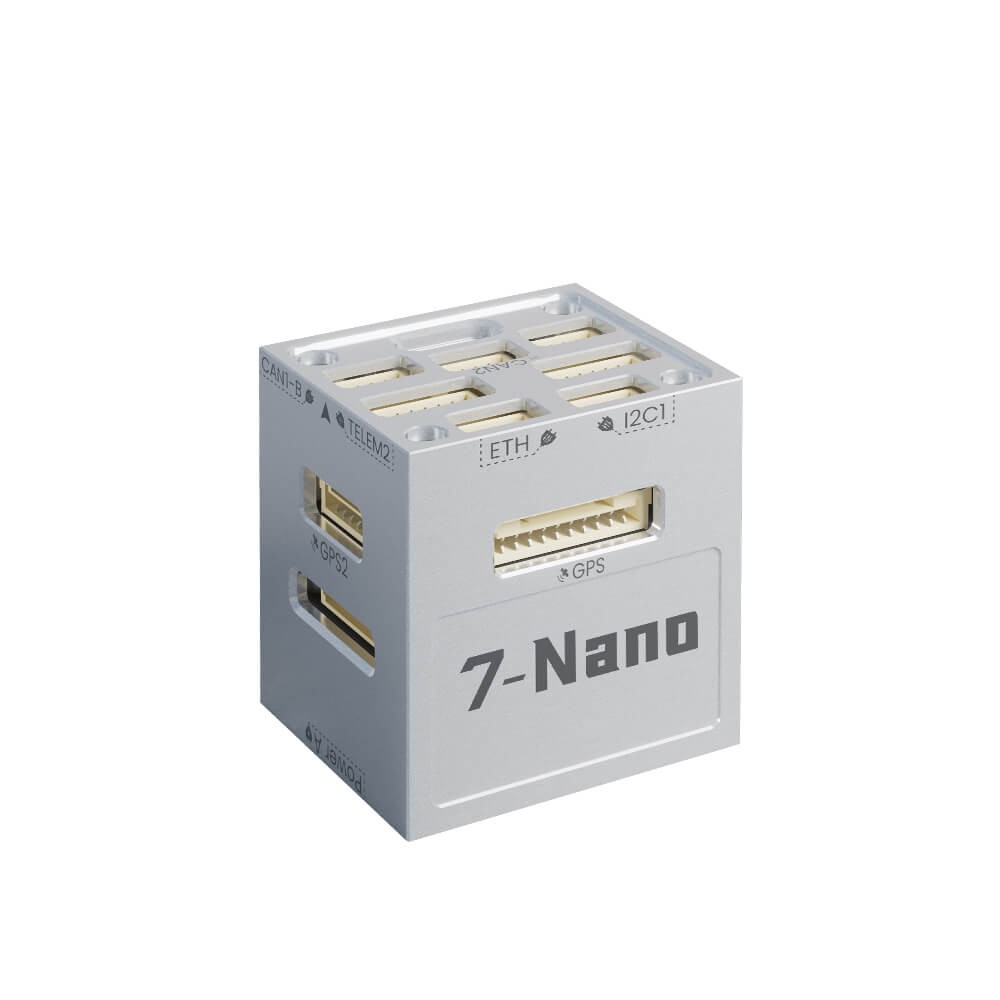

7-Nano Intelligent Controller

• Dual-precision floating-point H7 processor with an operating frequency of 480 MHz.

• Dual industrial-grade IMU redundancy design for enhanced reliability and fault tolerance.

• Innovative stacked design featuring compact size, full functionality, rich interfaces, and strong expandability.

• Integrated Ethernet interface supporting high-speed communication via Ethernet ports with onboard computers and peripheral components.

• Configurable 5V/3.3V PWM output for flexible peripheral control.

• Compatible with ArduPilot, FMT, and PX4 firmware.

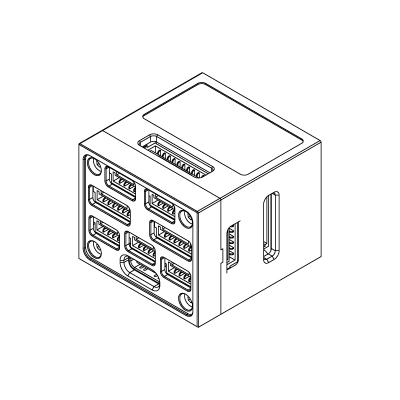

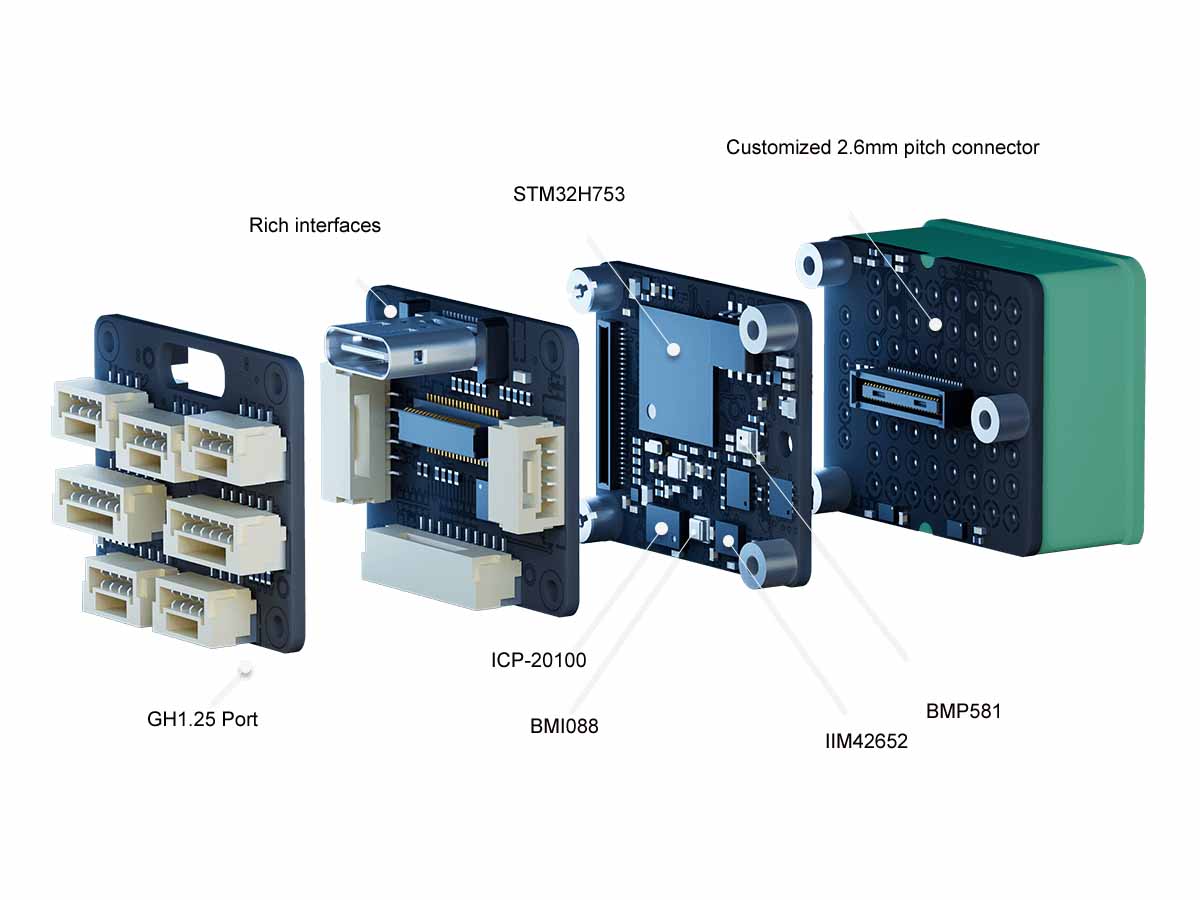

High-Integration Stacked Design | Compact and Exquisite

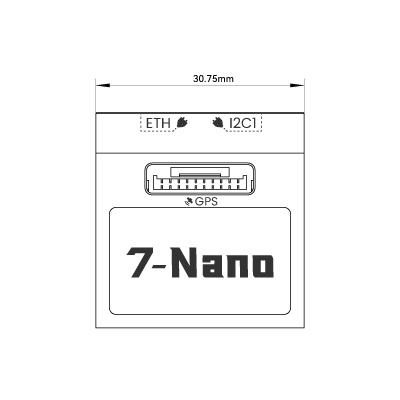

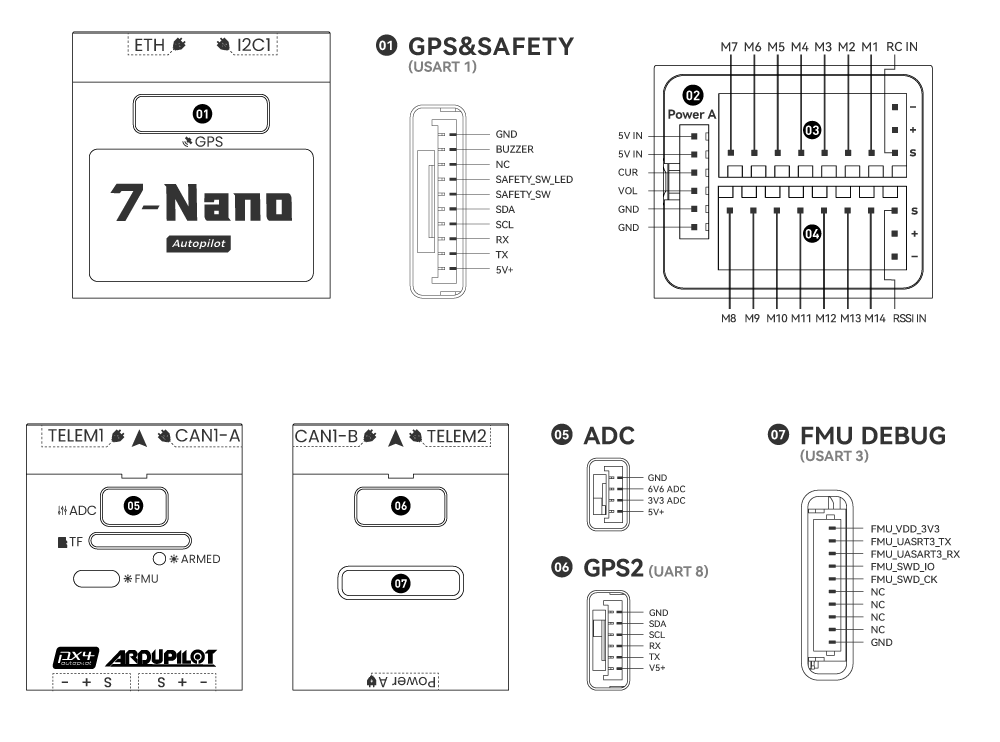

The 7-Nano adopts a highly integrated stacked design. With coin-sized dimensions and a weight of only 33.8 grams, it features an exquisitely compact and space-saving structure, enabling easy integration into space-constrained unmanned systems.It also provides a rich array of functional interfaces with side-mounted wiring ports for convenient installation, satisfying most expansion requirements.

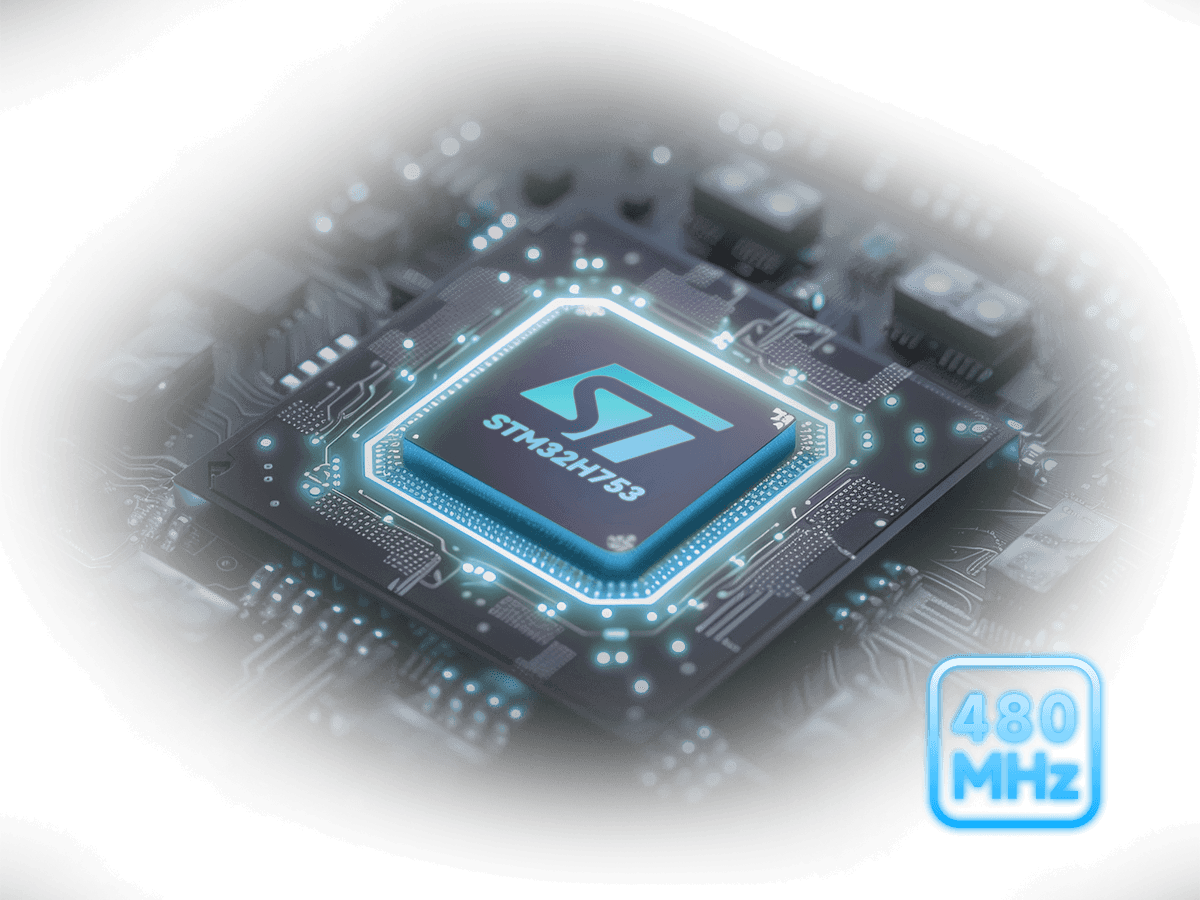

Performance Leap | STM32H753 High-Speed Processor

Integrated STM32H753 high-performance processor with secure boot and secure firmware update capabilities. The 480 MHz dual-precision floating-point unit is paired with a 2MB Flash memory space, compatible with full

drivers and functionalities of ArduPilot and PX4 (including IMU temperature learning, non-GPS navigation, FFT filtering algorithms, and Lua scripting),while reserving ample space for future development and new driver integration.

100-Megabit Ethernet Interface | Empowering AI

Integrated Ethernet PHY interface supports Ethernet expansion for onboard computers, optical pods, and data links, providing high real-time, high-bandwidth communication assurance for intelligent AI applications such as swarm operations and visual navigation/tracking in unmanned systems.

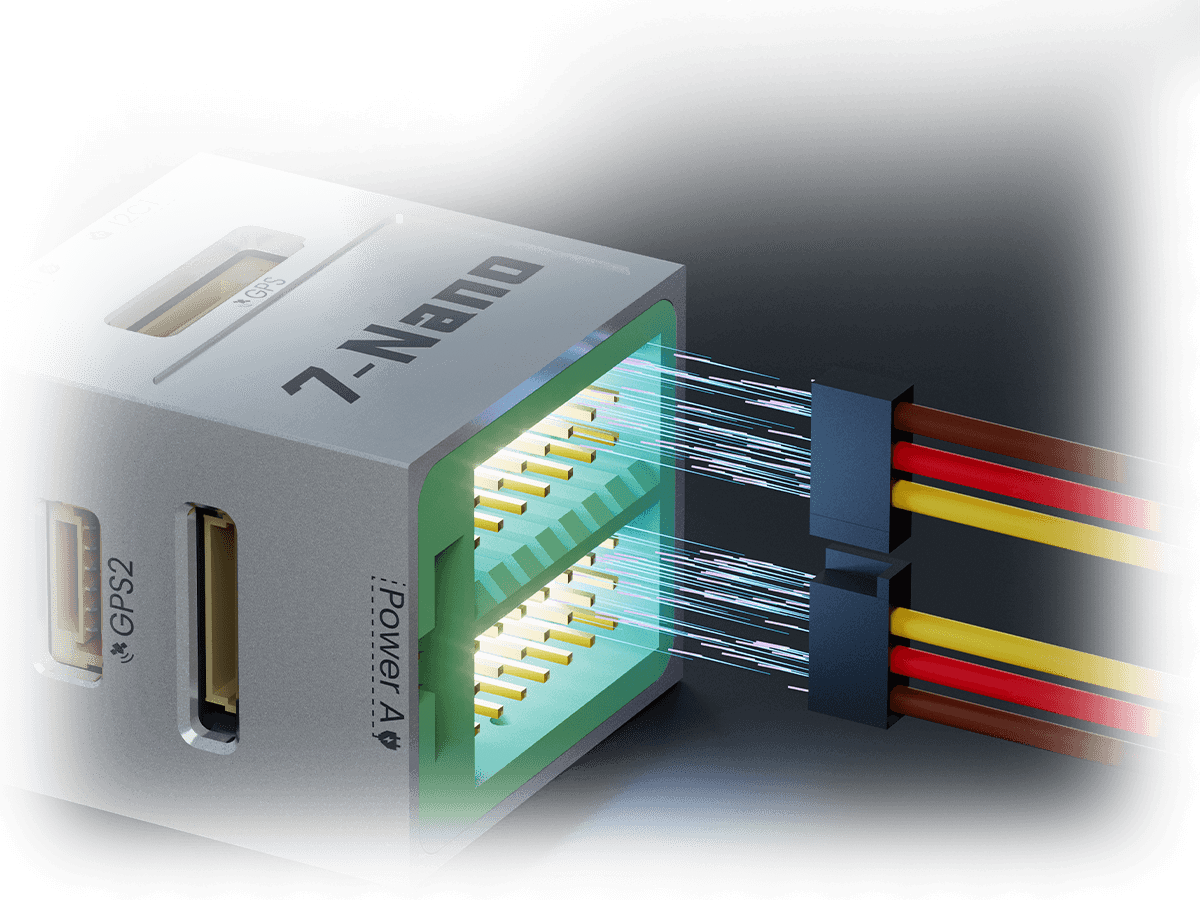

Flexible Switching | Superior Anti-interference Capability

Supports software-switchable 3.3V/5V PWM output. The 3.3V PWM offers better peripheral compatibility, while the 5V PWM effectively reduces signal distortion and attenuation caused by line loss and interference, enhancing system stability and safety.

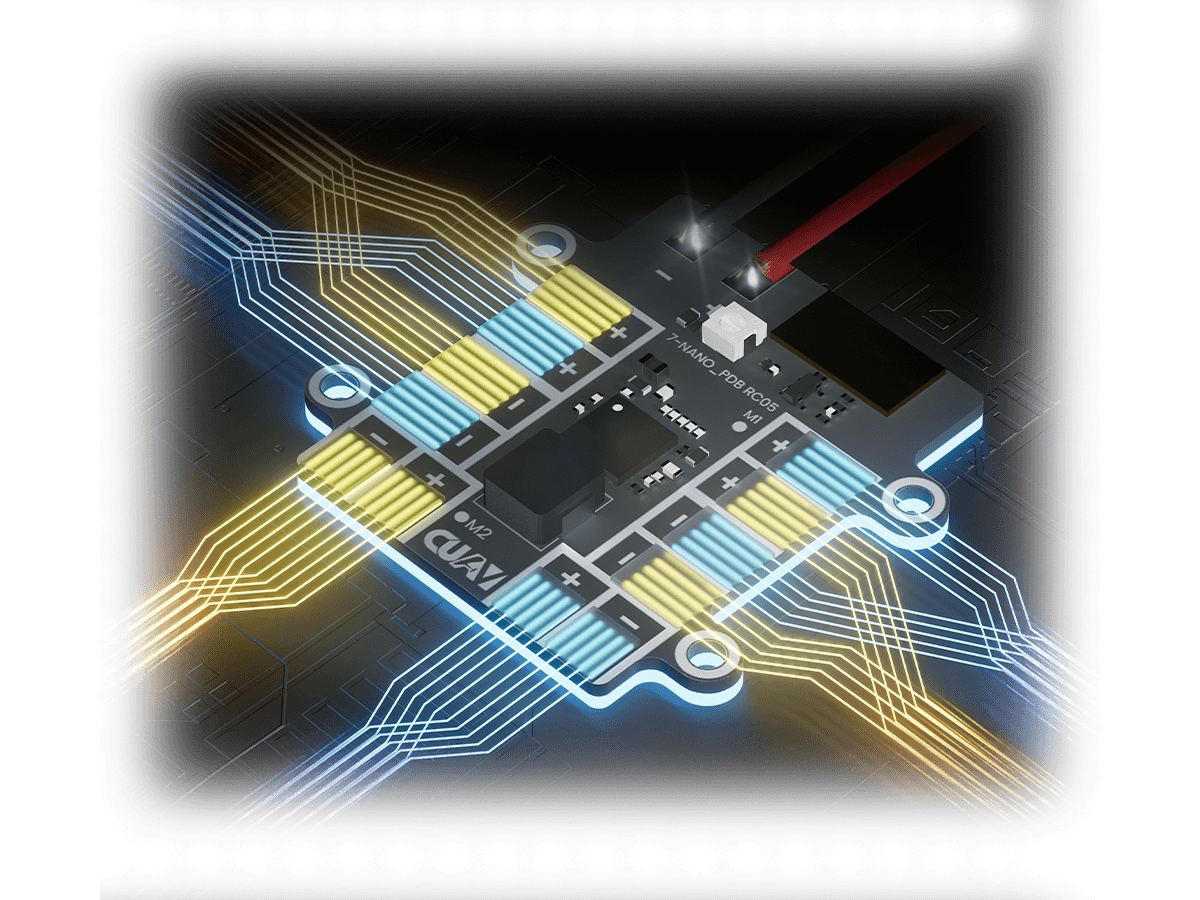

7-Nano PDB | Supports 70V input voltage and 60A current

The 7-Nano can be optionally equipped with a PDB board, which integrates voltage and current detection, as well as power distribution functions. It supports 70V voltage input (3S to 16S), 60A current detection, and six-channel power distribution. The device is pre-calibrated at the factory, allowing users to achieve high accuracy in voltage and current measurements without additional calibration procedures.
